Separate Two Color Flexo Printing Machine

Model:XKFP-2800

XKFP-2800 Separate Two Color Flexo Printing Machine can print two colors simultaneously or separately. It is equipped with a high-precision transmission system and printing unit to meet the needs of complex patterns and colors. It can be applied to printing on a variety of materials. It adopts advanced control system and human-machine interface, which is easy to operate, maintain and adjust.

Max. Printing material width : 800mm

Max. printing width : 760mm

Printing length range : 230-800mm

Printing Speed : 5-100m∕min

Separate Two Color Flexo Printing Machine
Product Applications
Product Description
Separate Two Color Flexo Printing Machine of Features and Structure



(1)Separate Two Color Flexo Printing Machine adopt with synchronous belt drive and hard gear face gear box. The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven(360º adjust the plate) gear driving the press printing roller.

(2)After printing, long running material space ,it can make the ink drying easily,better results.





Control Part



(1)Main motor frequency control , power.

(2)PLC touch screen control the whole machine.

(3)Reduce motor separate.





Unwinding Part



(1)Single work station.

(2)Hydraulic clamp,hydraulic  lift  the  material ,hydraulic control the unwinding material width,it can adjust left and right movement.

(3)Magnetic powder brake auto tension control.

(4)Auto web guide





Printing Part



(1) Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped. After that can run ink automatically. When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.

(2) Inking with ceramic anilox chambered doctor blade ,ink pump circulation.

(3)High precision planetary gear oven 360°circulation longitudinal register.

(4)±20mm transverse register.

(5)Adjust inking press and printing pressure press by manual.





Drying Part



Adopt with external heating pipe, temperature display, electric current control,centrifugal blower bring the wind.





Rewinding Part



(1)Back to back rewinding.

(2)Pneumatic tension control.

(3)2.2kw motor,vector frequency conversion control.

(4)3 inch air shaft.

(5)Hydraulic lowering the material.

Product Parameters
TYPE XKFP2800 XKFP21000 XKFP21200 XKFP21400 XKFP21600
Max. Printing material width 800mm 1000mm 1200mm 1400mm 1600mm
Max. Printing width 760mm 960mm 1160mm 1360mm 1560mm
Applicable printing materials Copy paper , cotton paper , tissue paper , A4 paper,Kraft paper Mostly as long as roll paper is ok: 15~500gms、NONWOVEN: 15-120G、PVC:10~120μm、OPP:10~100μm、BOPP:10~100μm、PE:15~150μm、NY:10~120μm、PET:10~100μm、CPP: 10~100μm Copy paper , cotton paper , tissue paper , A4 paper,Kraft paper Mostly as long as roll paper is ok: 15~500gms、NONWOVEN: 15-120G、PVC:10~120μm、OPP:10~100μm、BOPP:10~100μm、PE:15~150μm、NY:10~120μm、PET:10~100μm、CPP: 10~100μm Copy paper , cotton paper , tissue paper , A4 paper,Kraft paper Mostly as long as roll paper is ok: 15~500gms、NONWOVEN: 15-120G、PVC:10~120μm、OPP:10~100μm、BOPP:10~100μm、PE:15~150μm、NY:10~120μm、PET:10~100μm、CPP: 10~100μm Copy paper , cotton paper , tissue paper , A4 paper,Kraft paper Mostly as long as roll paper is ok: 15~500gms、NONWOVEN: 15-120G、PVC:10~120μm、OPP:10~100μm、BOPP:10~100μm、PE:15~150μm、NY:10~120μm、PET:10~100μm、CPP: 10~100μm Copy paper , cotton paper , tissue paper , A4 paper,Kraft paper Mostly as long as roll paper is ok: 15~500gms、NONWOVEN: 15-120G、PVC:10~120μm、OPP:10~100μm、BOPP:10~100μm、PE:15~150μm、NY:10~120μm、PET:10~100μm、CPP: 10~100μm
Printing length range 230-800mm 230-800mm 230-800mm 230-1000mm 230-1000mm
Printing speed 5-100m∕min 5-100m∕min 5-100m∕min 5-100m∕min 5-100m∕min
Register precision ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm
Thickness of plate(including the thickness of double sides glue) 2.28+0.38 2.28+0.38 2.28+0.38 2.28+0.38 2.28+0.38
Main motor power 4KW 4KW 4KW 4KW 4KW
Total power 16KW 16KW 19KW 19KW 22KW
Dimensions (L × W × H) 6600×1900×2200mm 6600×2100×2200mm 6600×2300×2200mm 6600×2500×2200mm 6600×2700×2200mm
Product Details
Hydraulic unwinding system,through the hydraulic feeding method,covenient air exchange shaft,automatic fast feeding.
Correction can reduce the paper roll alignment adjustment time automatic constant tension control.
Helical gear ensures more stable printing process and more accurate printing effect.
Printing uses a single scraper and ceramic roller to ensure clearer pattern printing.
The resin plate of the printing machine passes the demand, customizes the graphic information, and prints the graphic on the printing material.

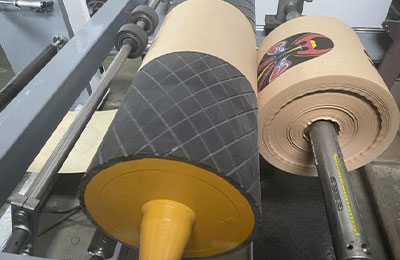

The rewinding part of the printing machine rewinds the printed paper according to the requirements to ensure that the tension of the paper is even and stable, so as to avoid the situation of paper stretching and avoid rapid rewinding that will cause paper damage and quality degradation.
FAQ
Separate Two Color Flexo Printing Machine

Usually we quote within 24 hours after we get your inquiry.

What is the price of shipping?

Depending upon the port of delivery, prices varies.

How long can we get the goods?

For standard machine, we usually delivery in three weeks. Customized machine delivery in 30-60 days.
